Installing the HPD Catch Can: Part Two
Then remove Crankcase breather hose.
-

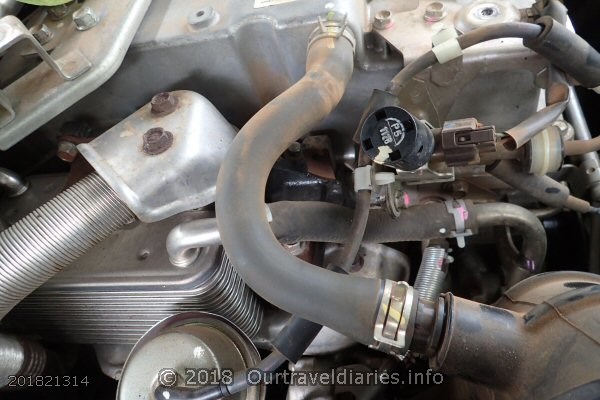

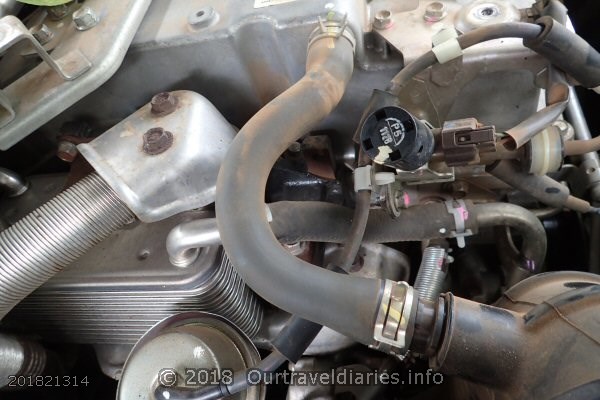

- The Pajero crankcase breather hose.
Remove the barb from the Air intake duct by just pulling it straight out. Then insert the HPD Hose reducing tail (OCC-VW-A1) into the Air intake duct.
-

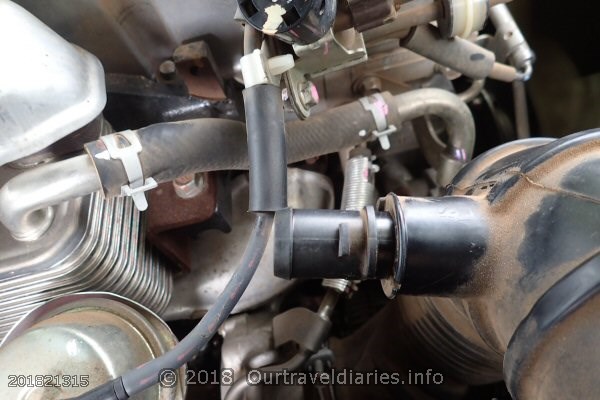

- Remove the barb from the Pajero Air Intake Duct.
-

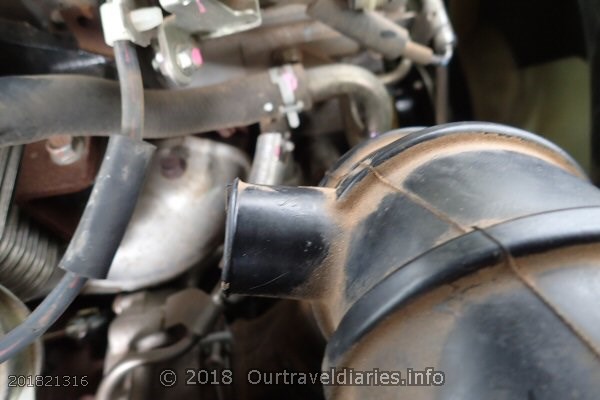

- Pajero Air Intake Duct without the barb.
-

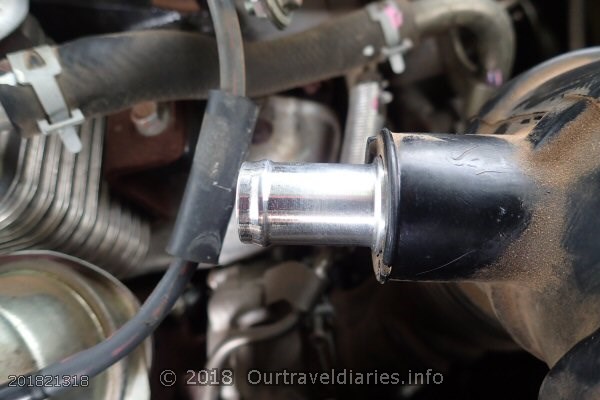

- The Pajero Air Intake Duct with with the HPD reducing barb installed.
I found the supplied RH-19 rubber hoses to be too long so decided to cut them down to a more practical size. After measuring and cutting the rubber hose to length place the spring clips on each of the four ends of the rubber hose.
-

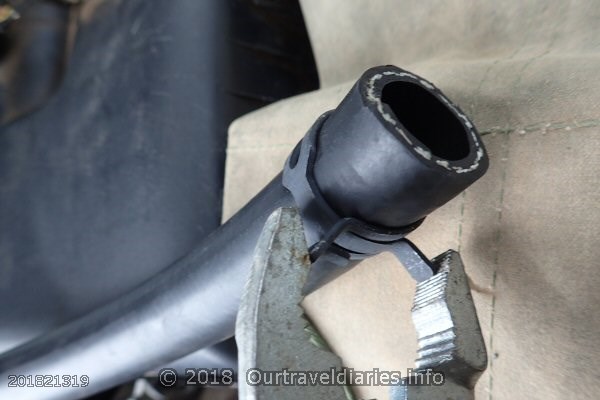

- Fit the clips to the rubber hose.
Now fit the hose from the HPD catch can lower inlet to the engines rocker cover breather barb. Fit the upper outlet hose to the air intake duct.
-

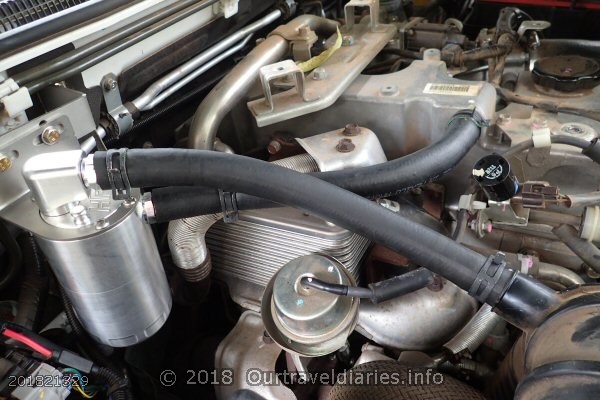

- The HPD catch can with the inlet and outlet hoses fitted.
Refit the engine cover and that’s it done.
-

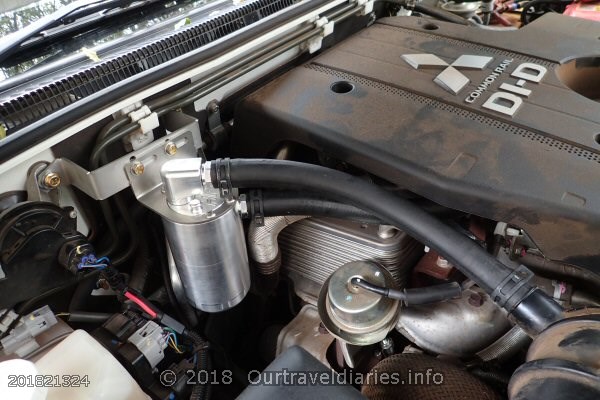

- HPD catch can, Job finished.
